Wastewater pack, pH

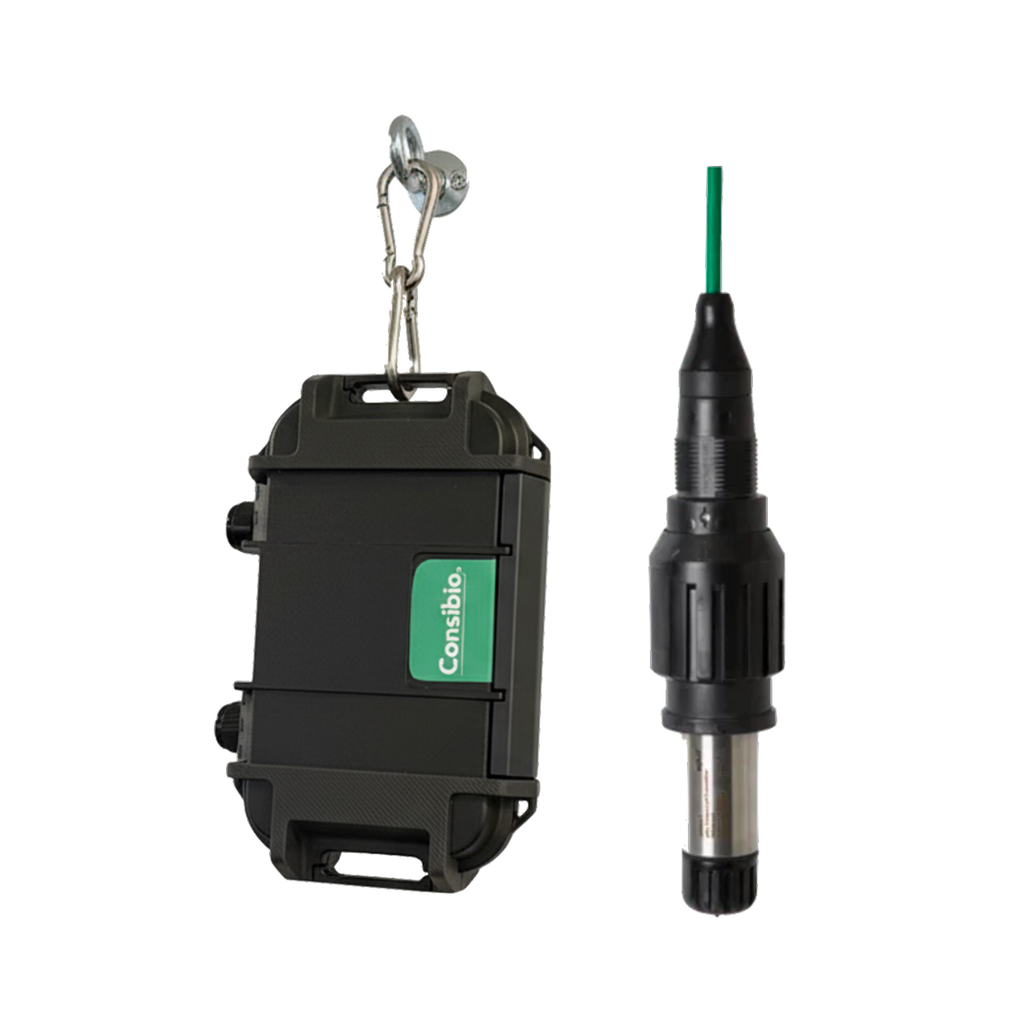

The pH + WD-68 Monitoring Pack combines continuous pH measurement with rugged, battery-powered data logging and secure cloud connectivity.

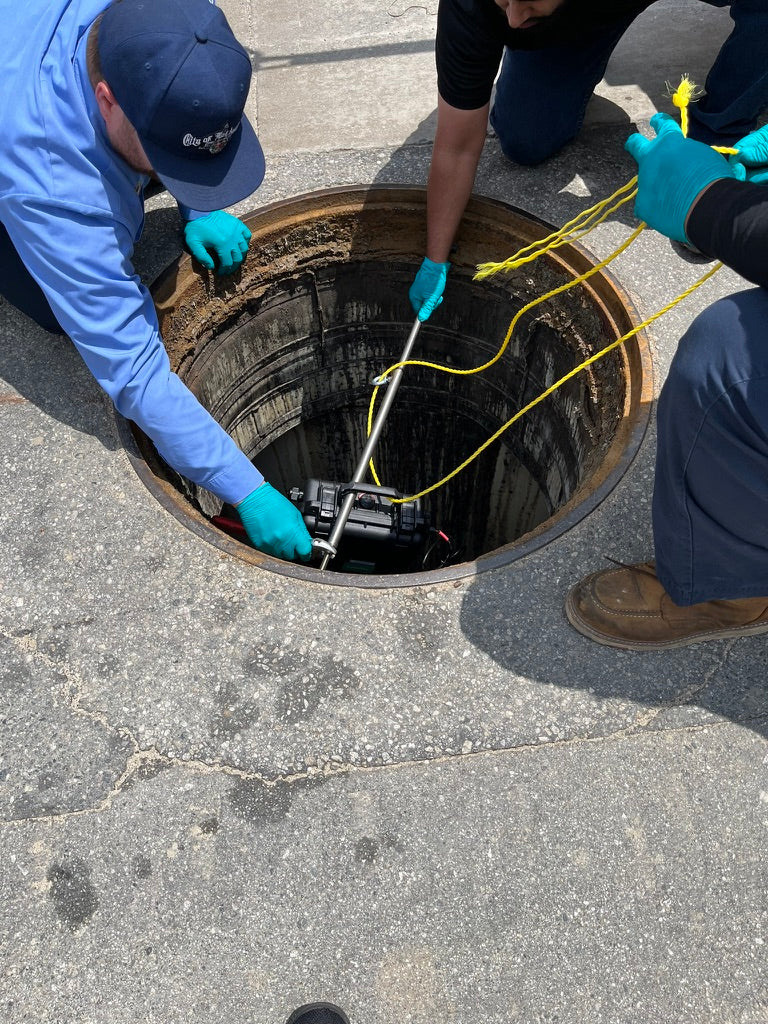

Designed for wastewater, sewer, and industrial environments, the solution enables reliable monitoring of chemical conditions directly in pipes, tanks, and open channels. All data is logged locally and transmitted automatically to the cloud for remote monitoring, alarm handling, and documentation.
Key Features
- Measurement range: 0–14 pH
- Built-in temperature compensation
- IP68 / NEMA 6X rated housing
- Automatic buffer adjustment
Logger WD-68
- Cellular: LTE Cat-M1, NB-IoT (satellite optional)
- Automatic selection of the best network based on coverage
- Expected lifetime: 10 years
- Battery life: 1–2 years depending on configuration
- Free lifetime over-the-air updates
- Encrypted, NIS2-compliant data transmission
- Security: TLS 1.3 protocol
-
Direct SRO / SCADA integration option
Hardware
- Three parallel I/O ports (RS485, SDI-12, 4–20 mA, pulse counter, 3.3 V / 12 V outputs)
- Hot-swappable dual battery slots
- Optional Li-SOCl₂ packs for >5 years standby
- Option for solar or permanent power
- Optimized for long-term field deployments with minimal maintenance
Cloud Connectivity
- Includes 1 year access to Consibio Cloud
- Global multi-network IoT SIM card included
- All data traffic included
- Real-time monitoring, alarms and reporting
- Renewal after first year:
$299 / €285 / DKK 2,340 per year
