Wastewater pack, combined level, flow & H2S
The Combined Level & H₂S Pack delivers hydraulic and gas monitoring in one integrated solution. By combining non-contact radar level measurement with continuous hydrogen sulphide monitoring, operators gain real-time insight into both system performance and corrosion or odor risks, from a single installation point.

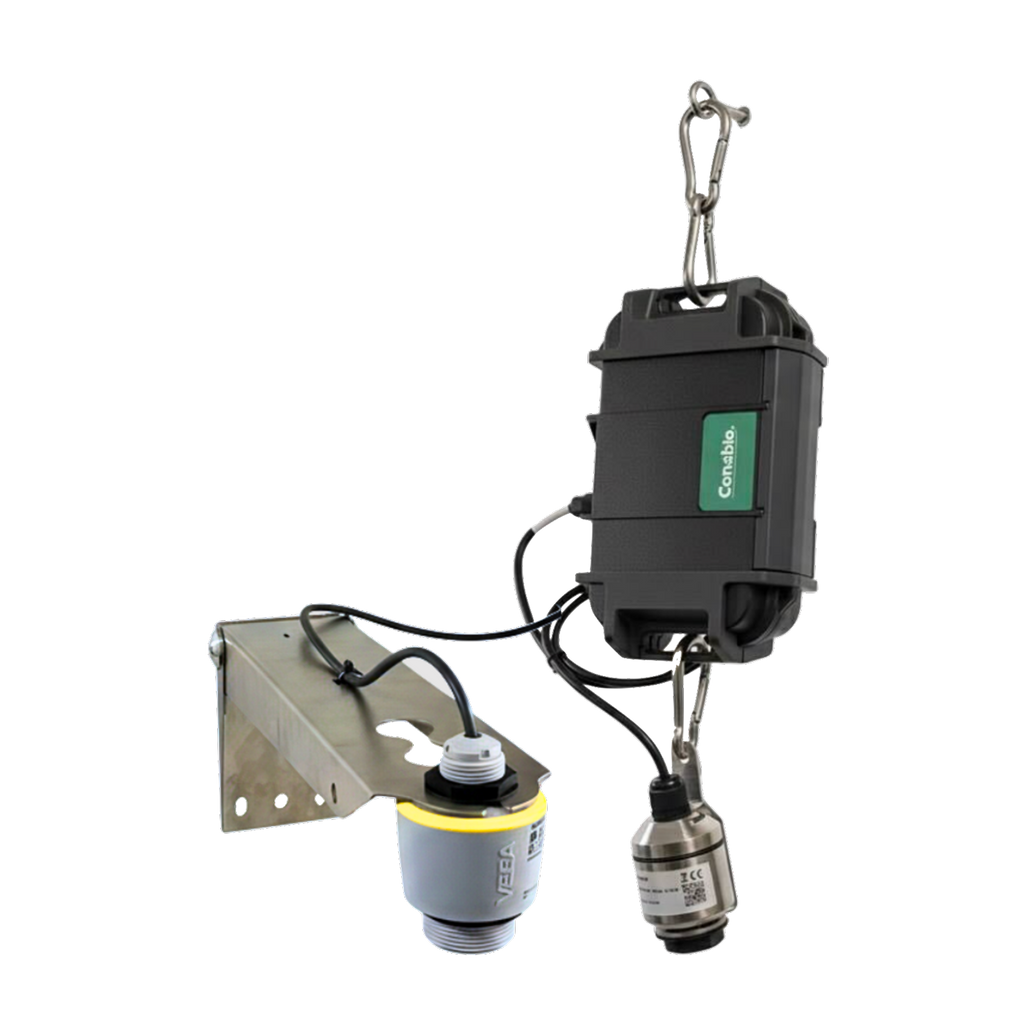

Built around the VEGA C21 radar sensor and the Consibio H₂S sensor in AISI 316 stainless steel, the system logs all data locally and transmits it securely to the cloud for remote monitoring, alarms, and SCADA integration.
By correlating hydraulic and gas data, utilities can detect surcharge events, infiltration effects, sedimentation patterns, and chemical dosing needs earlier, and act with greater confidence.
Selected Highlights
- Combined level and H₂S monitoring in one installation
- Level accuracy: ± 2 mm (± 0.079 in)
- Level range: up to 15 m (50 ft)
- H₂S range: 0–50 ppm or 0–2000 ppm
- Built-in heating for stable readings in high humidity
Logger WD-68
- Cellular: LTE Cat-M1, NB-IoT (satellite optional)
- Automatic selection of the best network based on coverage
- Expected lifetime: 10 years
- Battery life: 1–2 years depending on configuration
- Free lifetime over-the-air updates
- Encrypted, NIS2-compliant data transmission
- Security: TLS 1.3 protocol
-
Direct SRO / SCADA integration option
Hardware
- Three parallel I/O ports (RS485, SDI-12, 4–20 mA, pulse counter, 3.3 V / 12 V outputs)
- Hot-swappable dual battery slots
- Optional Li-SOCl₂ packs for >5 years standby
- Option for solar or permanent power
- Optimized for long-term field deployments with minimal maintenance
Cloud Connectivity
- Includes 1 year access to Consibio Cloud
- Global multi-network IoT SIM card included
- All data traffic included
- Real-time monitoring, alarms and reporting
- Renewal after first year:
$299 / €285 / DKK 2,340 per year
