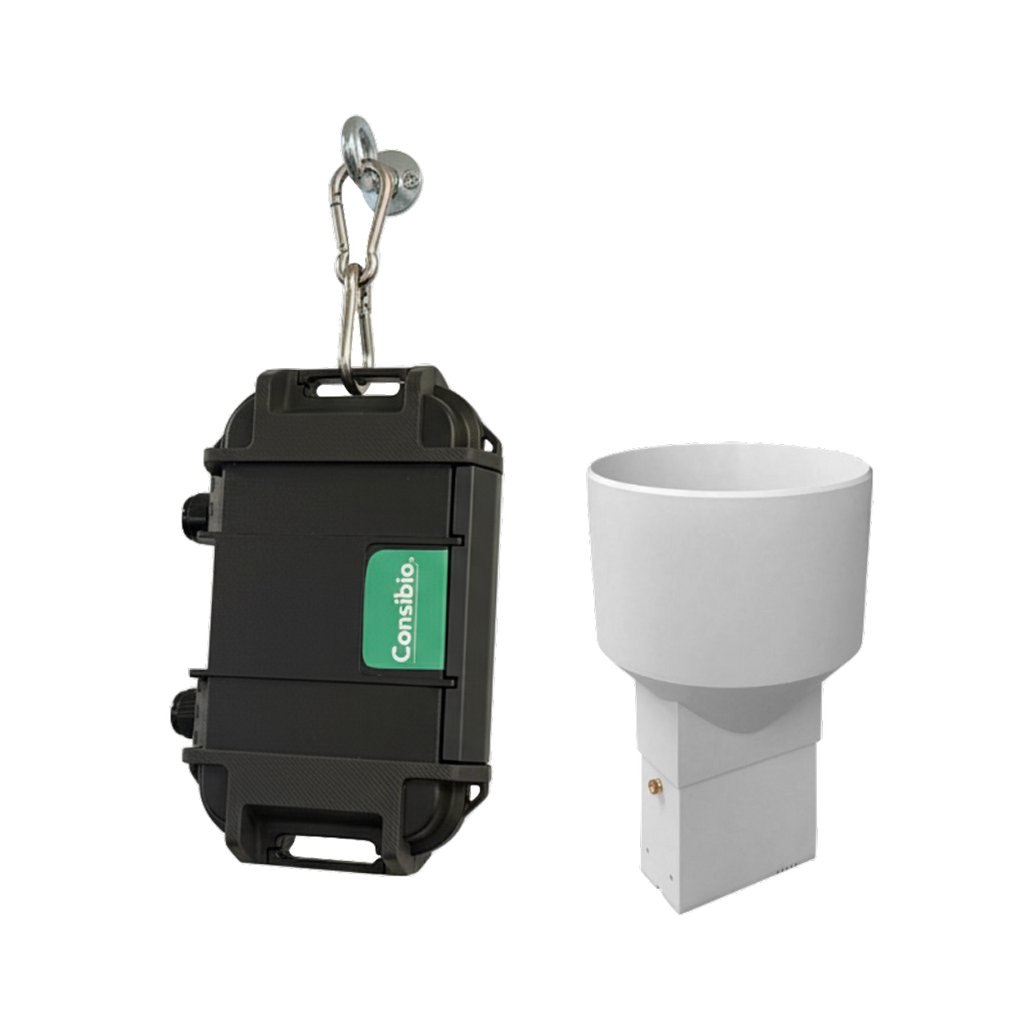

Rain gauge pack
The Rain Gauge + WD-68 Pack combines high-accuracy precipitation measurement with autonomous, long-term data logging and secure cloud connectivity.
Built around a Pronamic tipping bucket rain gauge and the Consibio Logger WD-68, the solution delivers reliable rainfall data for sewer monitoring, inflow & infiltration studies, overflow analysis, and hydraulic modeling.

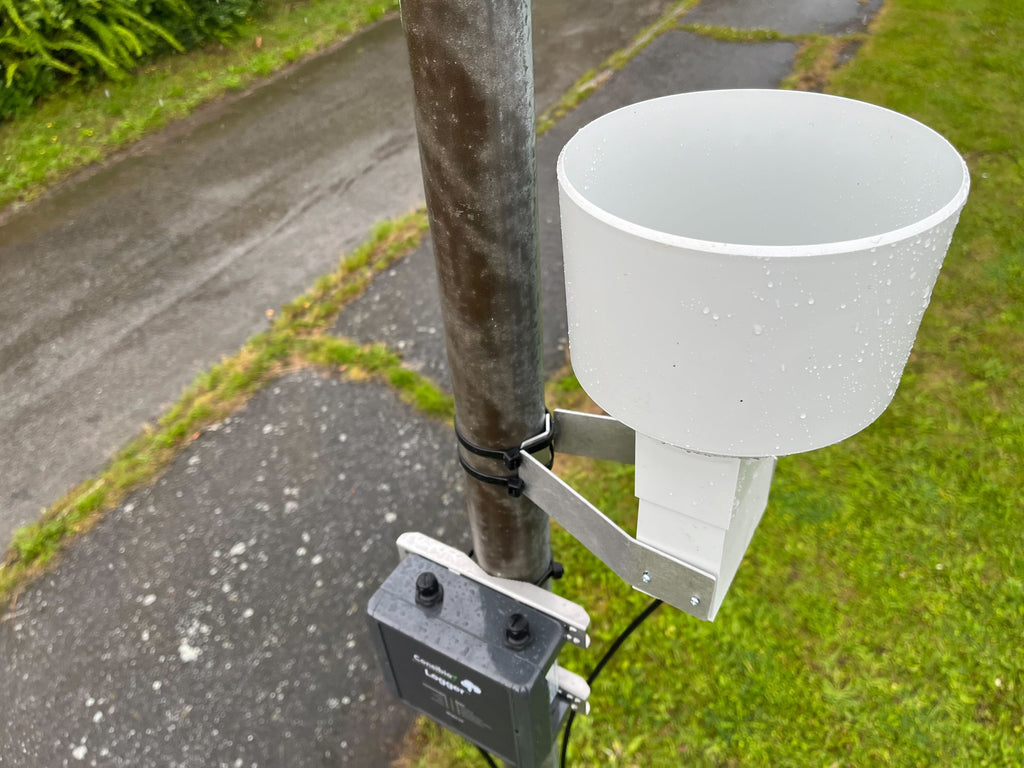

Designed for permanent outdoor installation, the system enables precise correlation between rainfall intensity, duration, and sewer network response.
Key Features
- High-precision tipping bucket rain gauge
- Pulse output for direct connection to WD-68
- Configurable tip resolution (e.g. 0.1 / 0.2 mm)
- Real-time rainfall intensity & accumulated precipitation
- Event-based logging for storm analysis
Logger WD-68
- Cellular: LTE Cat-M1, NB-IoT (satellite optional)
- Automatic selection of the best network based on coverage
- Expected lifetime: 10 years
- Battery life: 1–2 years depending on configuration
- Free lifetime over-the-air updates
- Encrypted, NIS2-compliant data transmission
- Security: TLS 1.3 protocol
-
Direct SRO / SCADA integration option
Hardware
- Three parallel I/O ports (RS485, SDI-12, 4–20 mA, pulse counter, 3.3 V / 12 V outputs)
- Hot-swappable dual battery slots
- Optional Li-SOCl₂ packs for >5 years standby
- Option for solar or permanent power
- Optimized for long-term field deployments with minimal maintenance
Cloud Connectivity
- Includes 1 year access to Consibio Cloud
- Global multi-network IoT SIM card included
- All data traffic included
- Real-time monitoring, alarms and reporting
- Renewal after first year:
$299 / €285 / DKK 2,340 per year
