Inductive conductivity sensor solution

Complete monitoring solution including sensor, logger, connectivity and cloud.

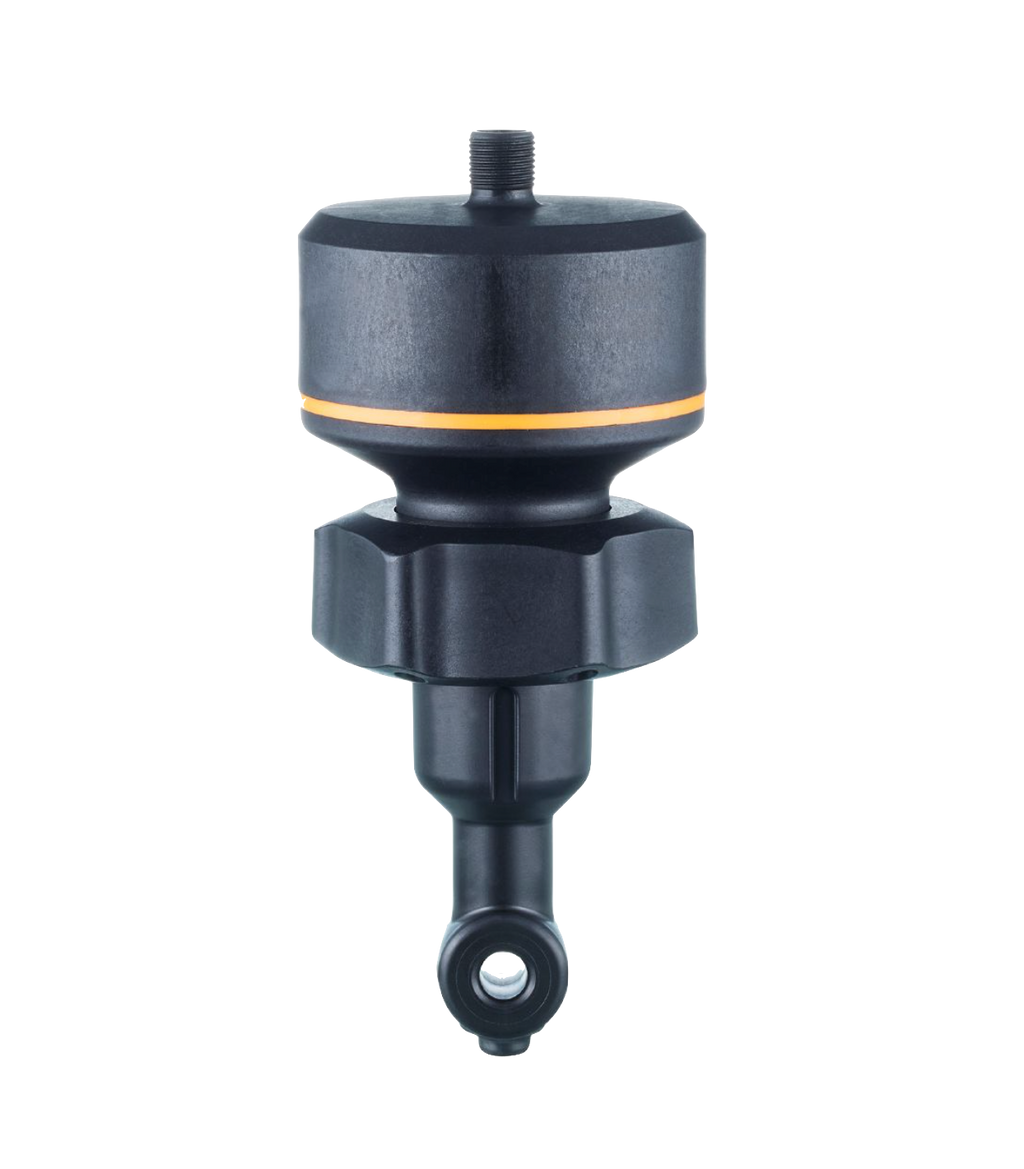

The Conductivity solution is built around the LDL400 inductive conductivity sensor for reliable water quality measurement in wastewater and process water applications. The inductive measurement principle enables accurate readings without direct electrode contact, making it highly resistant to fouling and corrosion from aggressive or saline media.

All data is logged and transmitted automatically to the cloud, allowing operators to monitor water quality in real time and receive alarms if abnormal conditions occur.

Selected Highlights

• Inductive measurement, no direct contact with media
• Conductivity range: 100 - 2,000,000 µS/cm
• Accuracy: ±2% FS
• Temperature-compensated measurements
• IP68/IP69K protection rating

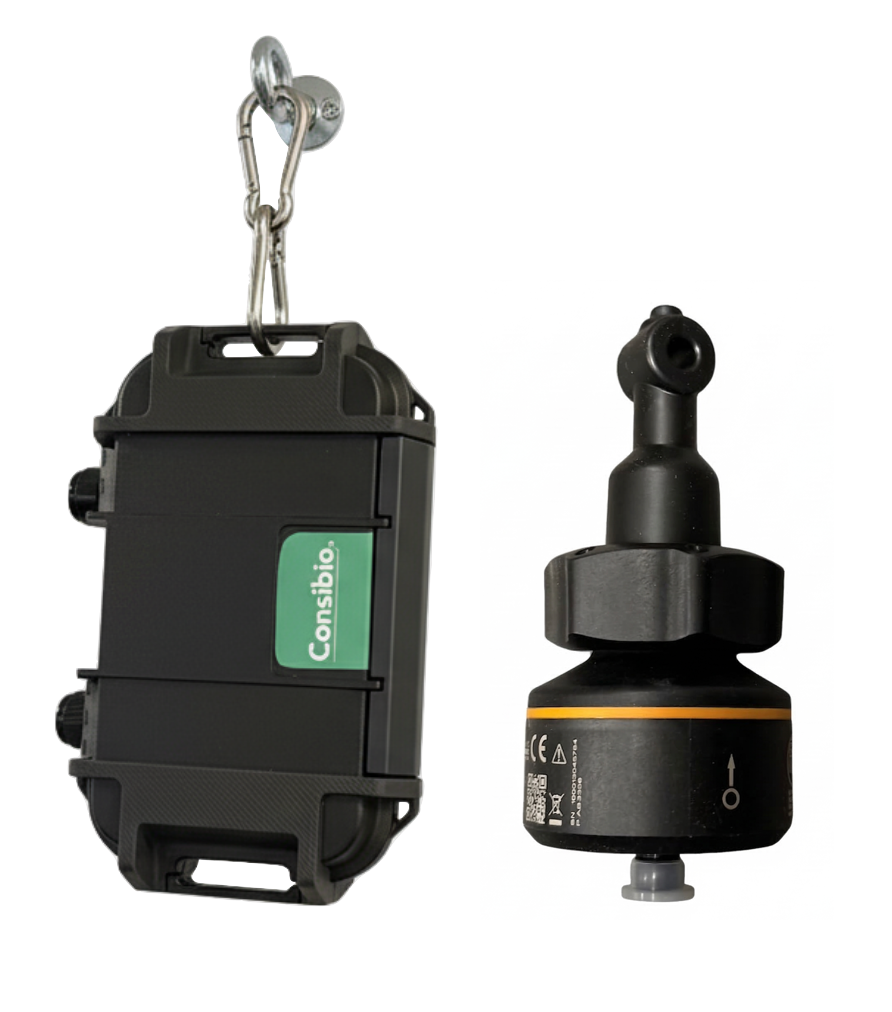

Logger WD-68

• Cellular: LTE Cat-M1, NB-IoT (satellite optional)
• Automatic selection of the best network based on coverage
• Expected lifetime: 10 years
• Battery life: 1-2 years depending on configuration
• Free lifetime over-the-air updates
• Encrypted, NIS2-compliant data transmission
• Security: TLS 1.3 protocol

• Direct SRO / SCADA integration option

Hardware

• Three parallel I/O ports (RS485, SDI-12, 4–20 mA, pulse counter, 3.3 V / 12 V outputs)
• Hot-swappable dual battery slots
• Optional Li-SOCl₂ packs for >5 years standby
• Option for solar or permanent power
• Optimized for long-term field deployments with minimal maintenance

Cloud Connectivity

• Includes 1 year access to Consibio Cloud
• Global multi-network IoT SIM card included
• All data traffic included
• Real-time monitoring, alarms and reporting
• Renewal after first year:
  $299 / €285 / DKK 2,340 per year
