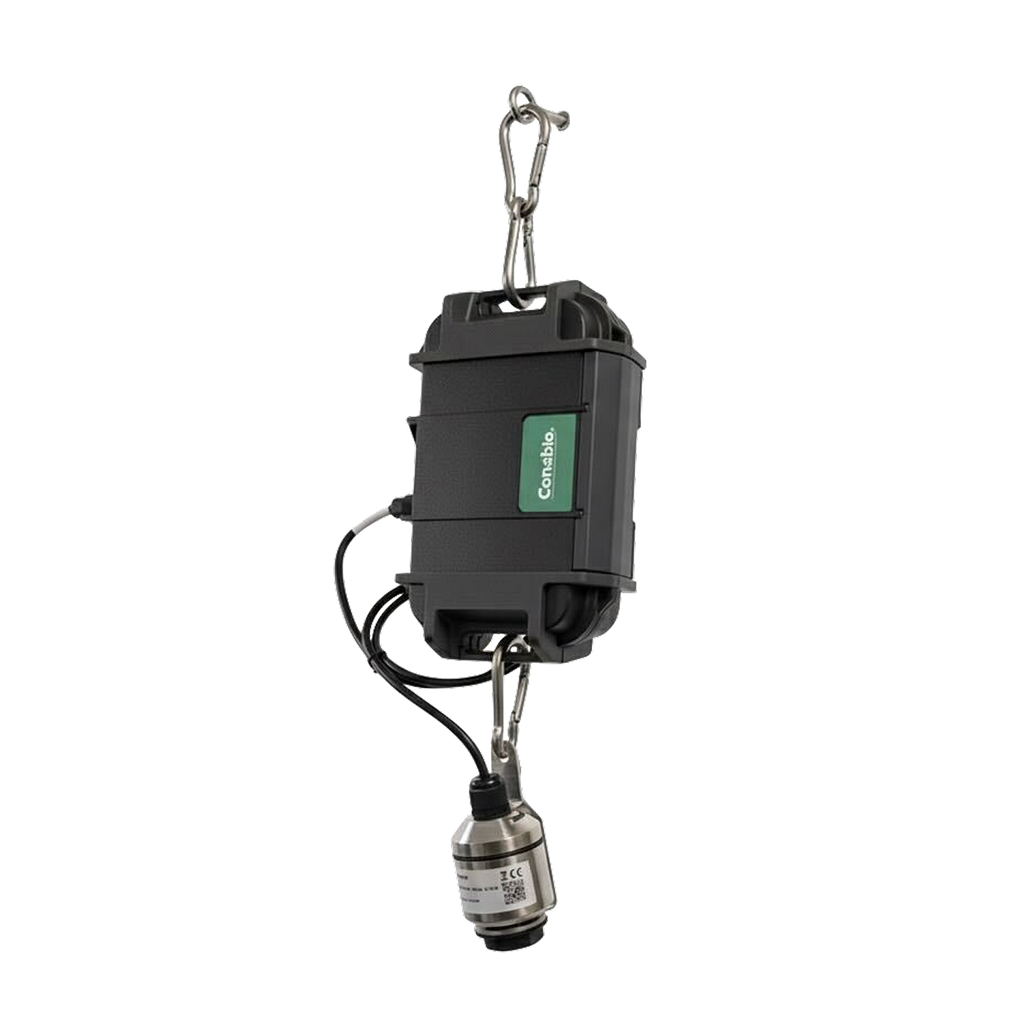

H2S sensor solution
The H₂S Sensor is designed for continuous monitoring of hydrogen sulphide gas in harsh wastewater and sewer environments. The sensor is built in AISI 316 stainless steel and includes an integrated heating element to prevent condensation and ensure stable readings even in high humidity for a very long time.

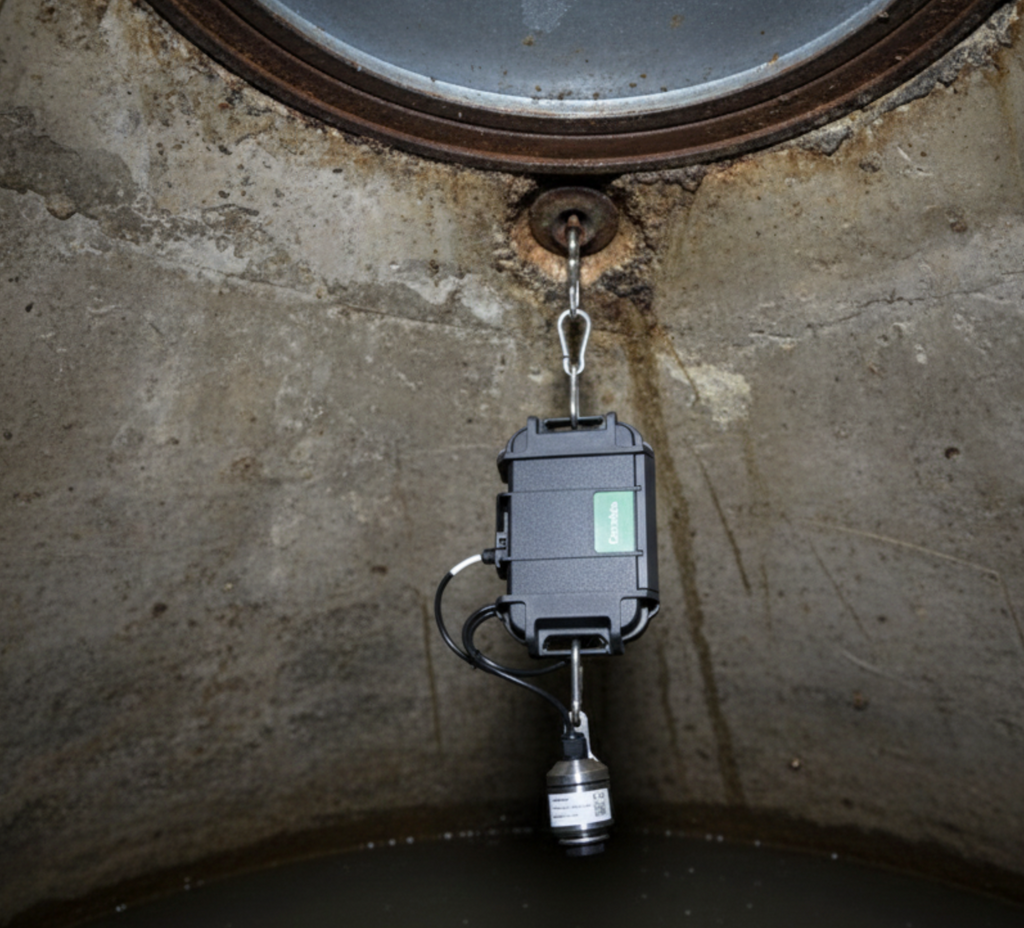

It can be installed directly into pipe walls using a G3/4” adapter or suspended inside manholes using a dedicated cable mount. Data is logged and transmitted automatically to the cloud, allowing operators to detect odor and corrosion risks early and optimize chemical dosing strategies.
Selected Highlights
- Measurement range: 0–50 ppm or 0–2000 ppm
- Resolution: 0.1 ppm (low range) or 2 ppm (high range)
- Built-in heating element for accurate readings in humid conditions
- Housing: AISI 316 stainless steel
- Calibration interval: 10-12 months
- Option for service and calibration agreement
Service & calibration program
- Service agreement with sensor swap program
- Receive a freshly calibrated sensor and return the used unit
- 1–2 service swaps per year depending on application
- 12-month warranty renewed after each service
- Fixed service price: $580 / €499 / DKK 4,100 per year
Logger WD-68
- Cellular: LTE Cat-M1, NB-IoT (satellite optional)
- Automatic selection of the best network based on coverage
- Expected lifetime: 10 years
- Battery life: 1–2 years depending on configuration
- Free lifetime over-the-air updates
- Encrypted, NIS2-compliant data transmission
- Security: TLS 1.3 protocol
-
Direct SRO / SCADA integration option
Hardware
- Three parallel I/O ports (RS485, SDI-12, 4–20 mA, pulse counter, 3.3 V / 12 V outputs)
- Hot-swappable dual battery slots
- Optional Li-SOCl₂ packs for >5 years standby
- Option for solar or permanent power
- Optimized for long-term field deployments with minimal maintenance
Cloud Connectivity
- Includes 1 year access to Consibio Cloud
- Global multi-network IoT SIM card included
- All data traffic included
- Real-time monitoring, alarms and reporting
- Renewal after first year:
$299 / €285 / DKK 2,340 per year
