Dissolved oxygen sensor solution

Complete monitoring solution including sensor, logger, connectivity and cloud.

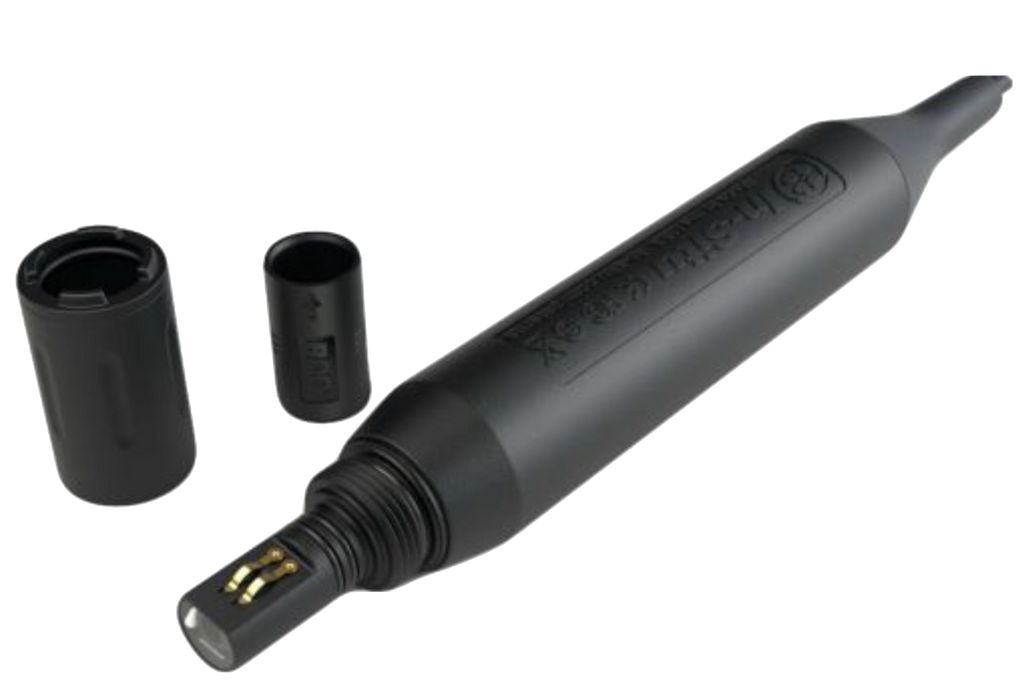

The dissolved oxygen solution is built around the In-Situ RDO Blue optical dissolved oxygen sensor for reliable DO measurement in wastewater and water quality monitoring applications. The optical measurement principle eliminates the need for membranes and calibration, ensuring stable operation with minimal maintenance even under demanding field conditions.

All data is logged and transmitted automatically to the cloud, allowing operators to monitor water quality in real time and receive alarms if abnormal conditions occur.

Selected Highlights

• Membrane-free optical measurement — no calibration required
• Measurement range: 0–60 mg/L | 0–600% saturation
• Accuracy: ±0.1 mg/L (0–20 mg/L)
• Integrated temperature measurement: ±0.1°C / ±0.2°F accuracy

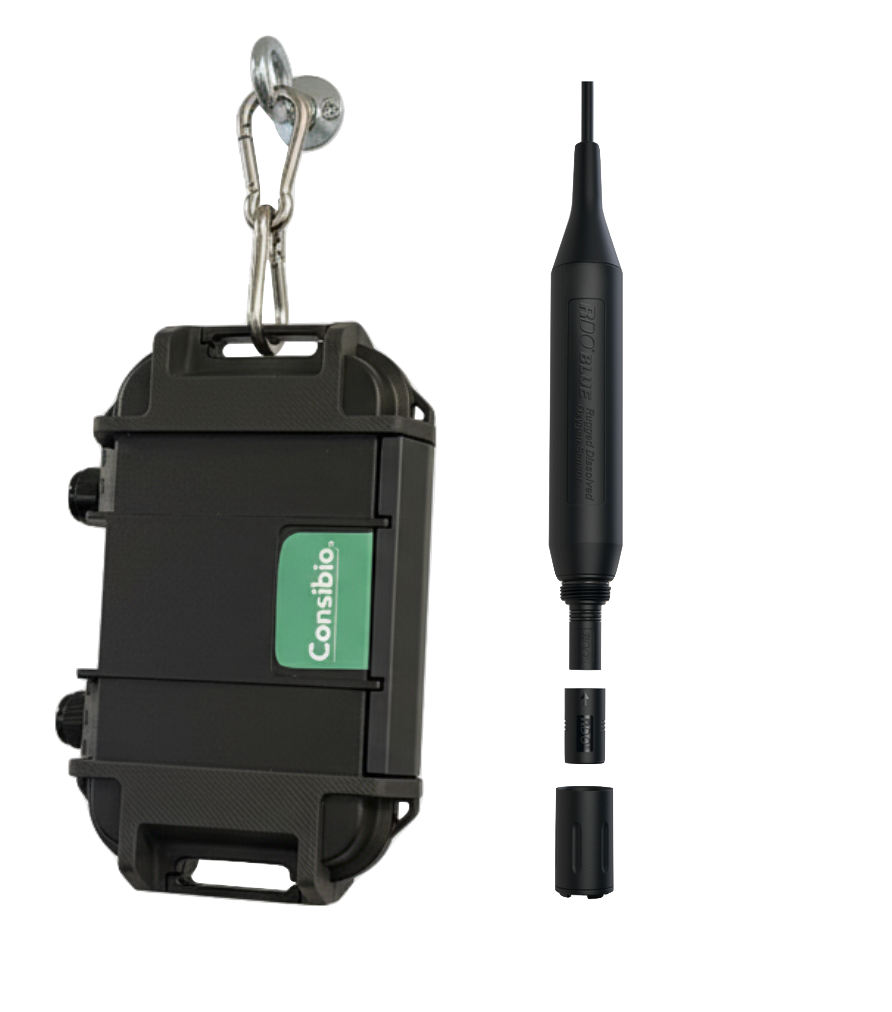

Logger WD-68

• Cellular: LTE Cat-M1, NB-IoT (satellite optional)
• Automatic selection of the best network based on coverage
• Expected lifetime: 10 years
• Battery life: 1–2 years depending on configuration
• Free lifetime over-the-air updates
• Encrypted, NIS2-compliant data transmission
• Security: TLS 1.3 protocol

• Direct SRO / SCADA integration option

Hardware

• Three parallel I/O ports (RS485, SDI-12, 4–20 mA, pulse counter, 3.3 V / 12 V outputs)
• Hot-swappable dual battery slots
• Optional Li-SOCl₂ packs for >5 years standby
• Option for solar or permanent power
• Optimized for long-term field deployments with minimal maintenance

Cloud Connectivity

• Includes 1 year access to Consibio Cloud
• Global multi-network IoT SIM card included
• All data traffic included
• Real-time monitoring, alarms and reporting
• Renewal after first year:
  $299 / €285 / DKK 2,340 per year
